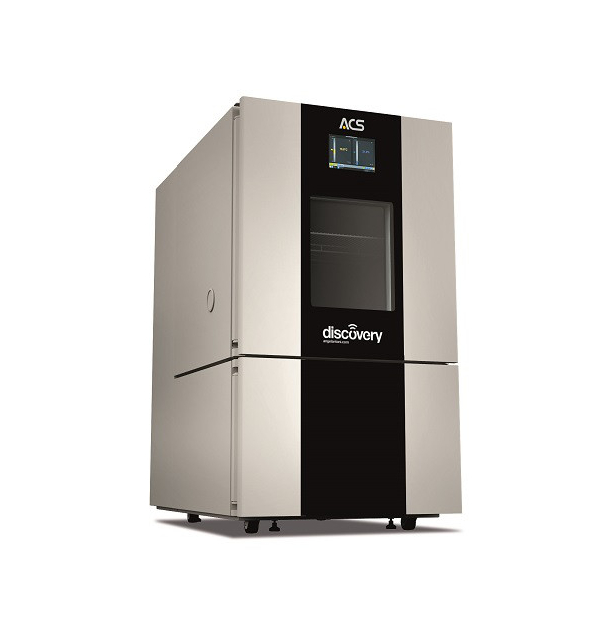

ATT CLIMATIC TEMPERATURE TEST CHAMBER

  • Mechanically air cooled cascade
  • 720 kg
  • Programmable Logic Controller
  • All hire chambers are calibrated to national and international standards.
  • Brochure (PDF)
Ref. No. 1078
Internal Dimensions 601 x 810 x 694mm (WxDxH)
External Dimensions 875 x 1786 x 1765mm (WxDxH)
Temperature Range -75°C to +180°C
Rate of Change 4.5°C/min. Heating from -70°C to +180°C
2.3°C/min. Cooling from +180°C to -70°C
Power Supply 400V / 3 Phase / 16 Amps + N + E
Port Holes 1 x 80mm dia Left Hand Side
1 x 150mm dia Right Hand Side
Humidity Range 10% to 98% in the range
+10°C to +95°C
