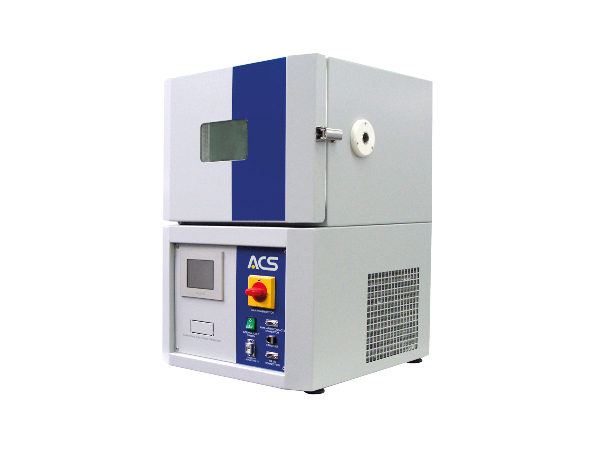

ATT CLIMATIC TEMPERATURE TEST CHAMBER

  • Mechanically air cooled
  • 1170 kg
  • Programmable Logic Controller
  • All hire chambers are calibrated to NPL
  • Brochure (PDF)
Ref. No. 1023
Internal Dimensions 1000 x 1130 x 953mm (WxDxH)
External Dimensions 1278 x 2222 x 2111mm (WxDxH)
Temperature Range -75°C to +180°C
Rate of Change 4.5°C/min. Heating from -70°C to +180°C
2.3°C/min. Cooling from +180°C to -70°C
Power Supply 400V / 3 Phase / 32 Amps
Port Holes 1 x 80mm dia Left Hand Side
1 x 150mm dia Right Hand Side
Humidity Range 10% to 98% in the range
+10°C to +95°C
