WHAT IS A TEST CHAMBER AND HOW DOES IT WORK?
Basic information on the purpose and operating principles of environmental test chambers
The importance and the operating principles of a test
Have you ever bought a product that turned out to be defective after just a few weeks, or even the first time you used it?
This might have happened because some products have been subjected to external factors such as temperature, humidity and vibrations that were not expected or considered when they were being designed, we often hear talk of "quality" and "reliability" as factors to be taken into consideration to make one's products stand out from the rest.
In today's global market in which every product can be sold in the most remote corners of our planet, it is essential that the development and design phase takes into consideration the different environmental conditions to which the product will be subjected, from warmer to cooler climates, the effect of salt corrosion, and many other factors.
In addition to the usage conditions, it is good to consider the various stresses that the product may be subject to during packaging, transport, and storage operations, which could cause damage or shorten the useful life of the product.
Can your product withstand all climatic conditions?
It is highly likely that from the very first days of its "life" your product will be subjected to stress factors, sometimes combined, for example:
- Climatic changes
- Vibrations
- Solar radiation
- Highest levels of humidity
So, what needs to be done to avoid these kinds of potential drawbacks and ensure greater product reliability? And which guarantees can be given to the customer?
The apparently simple answer would be to test the product in all its usage conditions...but how can this be done?
During the Research & Development phase many companies carry out tests on prototypes to check the reliability, testing the characteristics, stress resistance or simply the behaviour in the context of use. If these tests are not passed satisfactorily, one searches for the cause, or the defective component, to correct the problem.
Using an environmental test chamber helps manufacturers discover potential defects to be corrected before the production stage, ensuring:
- Lower maintenance costs
- Satisfied customers
There are various types of tests which can be performed, with a first categorisation dividing them into:
- Tests which subject the samples to environmental stresses, such as temperature and humidity
- Tests which subject the samples to mechanical stresses, such as vibrations and acceleration
In a test chamber special conditions can be recreated inside the test compartment in which the prototype to be tested is positioned.
To carry out the tests which belong to the first category a Climatic Test Chamber is necessary for Environmental Simulation tests.
How does a climatic chamber work?
The operating principle of a testing chamber can be explained by the two physical parameters that the chamber can control: temperature and humidity.
TEMPERATURE CONTROL
To control the temperature, the chamber must be able to perform two functions: heating and cooling. It also must be able to evenly distribute the temperature inside the test compartment.
Specific technical considerations about the distribution of air within the test compartment make it possible to achieve great uniformity of the temperature values over time and throughout the space of the chamber, ensuring that all parts and surfaces of the DUT are subjected to the same temperature.

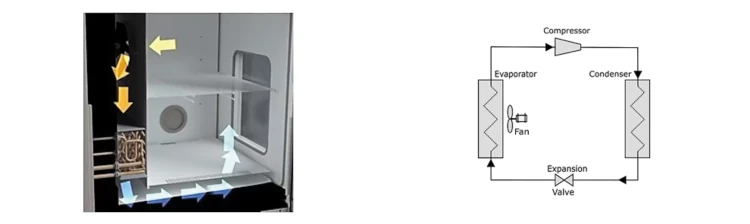

The mechanical cooling system of a climatic chamber consists of a closed-circuit system, with the following main components:
- Compressor
- Condenser
- Expansion valve
- Evaporator
By means of the compression and subsequent expansion of a refrigerant gas, the process will uniformly cool the test compartment.
The mechanical heating system consists of electric heating elements placed near the ventilation system: the heated air is conveyed by means of ventilation through the inside of the test compartment.
The action of the two functions of cooling and heating is controlled by the PLC according to the cycle parameters set by the operator to ensure the required performance.
HUMIDITY CONTROL
To control the humidity, the chamber must be able to perform two functions: humidification and dehumidification. It also must be able to distribute humidity uniformly within the test compartment.
Direct humidification is achieved by means of an electric humidifier, which injects steam through a hole in the air flow after the air recirculation fan. This ensures aerosol-free humidification. The humidifier is controlled by a dedicated algorithm for better reliability.
The chamber is dehumidified by a mechanical system based on the so-called cold finger principle, utilizing the same mechanical system used for cooling. According to this principle, when an object with a lower temperature is exposed to a higher ambient temperature, the moisture in the air condenses on the surface of the colder object. The evaporator is the element with the lowest temperature inside the climatic chamber, and a dedicated section of this is thus used to lower the humidity levels in the test compartment when required.
OTHER CHAMBERS FOR ENVIRONMENTAL TESTING
It must be said that there is no universal chamber that can simulate any and every type of conditions, but there are many types of versatile chambers that are designed to perform specific types of tests.
The test to be performed depends, firstly, on the product, the standards to which it must comply and the conditions in which it will operate.
