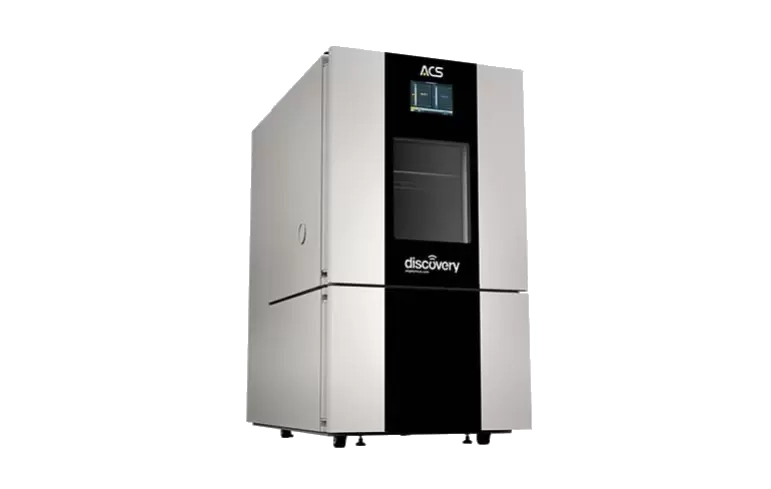

DISCOVERY MY CLIMATIC CHAMBERS FOR STRESS SCREENING
The Discovery My Chamber "ES" series provides greater performance than the basic version, while maintaining the same overall dimensions for the same volumes. It was designed for "overall quality" tests that require a rate of temperature change of 5K/min or for tests on elements that require great reliability.
These chambers can be supplied with the new ecological refrigerant gas R472B, having a GWP of 526.
The range of the ACS "ES" series Climatic and Thermostatic Chambers allows you to control the temperature and humidity inside the test compartment, in a range from -70°C to +180°C (temperature) and from 10% to 98% (relative humidity), with a rate of temperature change of at least 5K/min.
Features
- The compact body in RAL 7044 grey provides excellent corrosion protection with a powder coated finish
- The electromagnetic door lock provides maximum operator safety
- Ecological refrigerant gas in line with the European Regulation 517/2014
- 10" touchscreen panel with an intuitive, user-friendly interface
- New software that allows remote control of all chamber functions
- Automatic reporting, self-diagnosis, preventive maintenance
Standard Configuration
- Inspection window
- Ecological refrigerant gas in line with the European Regulation 517/2014
- Internal light
- Electromagnetic door lock
- Wheels and feet
Accessories
- Additional portholes
- UPS for the PLC
- Stainless steel internal shelves
- Notched porthole
- Electric power shut off to specimen during alarms
- New R472B refrigerant gas
Software

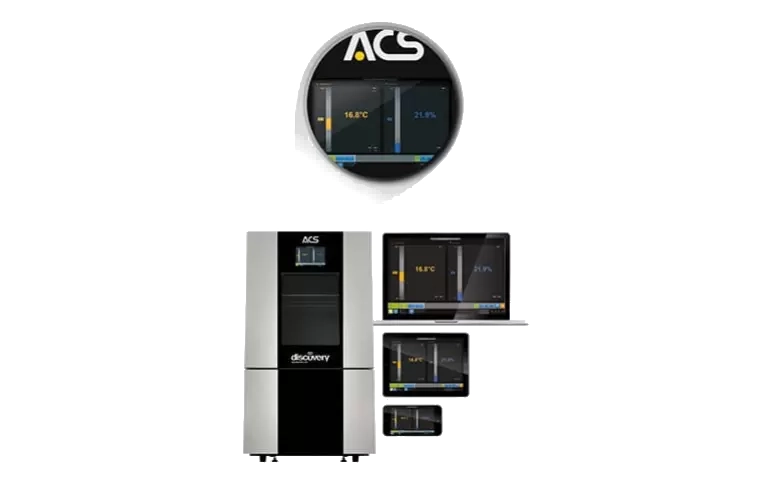

The MyKratos™ management software is embedded in the machine in built-in and completely dedicated hardware, which allows the control and management of the chamber functions. No installation is required, and it can be accessed from a PC via web browser or via the free app developed for tablets and smartphones. MyKratos™ allows multiuser and multilevel connections, even from different devices.
The MyAngel24™ self-diagnosis and remote service module is also available and included with the software.
Range
Climatic and thermostatic models
T -40°C / +180°C
DM340 (T) ES
DM600 (T) ES
DM1200 (T) E
T -75°C / +180°C
DM340 C (T) ES
DM600 C (T) ES
DM1200 C (T) E
